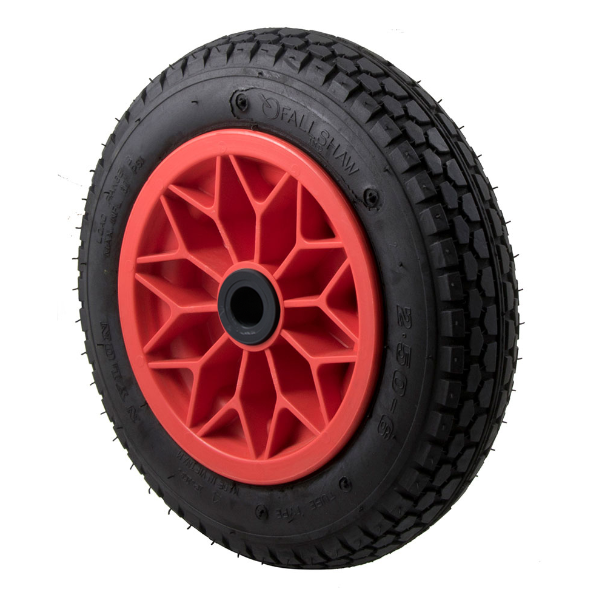

Plastic centred pneumatic wheels are the low cost alternative, with excellent performance in wet and corrosive environments. Available with 20mm - 3/4" - 5/8" or 1" plain bush polymer bearing.

Plastic centred pneumatics are supplied with butyl rubber seamless (butt-joined) tubes as standard. These premium tubes provide greater reliability and longer life than cheaper alternatives. Tubes can be replaced if originals are punctured (see spare parts).

Pneumatic Wheels are a great option for carrying loads over uneven surfaces or in environments that commonly require moving over obstacles. They also have the benefit of providing some additional suspension to protect fragile loads on trolleys or additional grip for moving loads outdoors in wet or muddy environments.

Bearings:
Plain bush (or bore). Used in corrosive environments (polymer bearings won’t rust).
Available in Available in 25.4mm - 20mm - 19mm - 16mm

Tyres:
4 ply tyres for longer, rougher life with an IND pattern tread. The IND pattern features the normal industrial type tread, a round profile with an even pattern for general use.

Pneumatic Plastic Centred Wheel Specifications:

• Tyre Type: Pneumatic
• Tyre Code: 250 x 6
• Diameter x Width mm: 275 x 60
• Tread Pattern Type: IND
• Rim Type: Plastic
• Bearing: Plain Bush
• Hub Width mm: 60
• Hub Bore mm: Available in 25.4 - 20 - 19 - 16
• Capacity at 8kph kg: 110

Pneumatic Plastic Centred Wheel Features:

• High engineering standards for wobble free operation
• Polymer bearings won’t rust
• Tyres are 4 ply for longer, rougher life

It is normal for Pneumatic Wheels to lose tyre pressure over time even if they are not being used and it’s important for your safety that you ensure that the wheels are pumped up to their recommended PSI before use. Do NOT inflate over recommended tyre inflation pressure (30 psi).

Contact Reflex Equip today for expert advice on the right Pneumatic Wheels for your particular application
