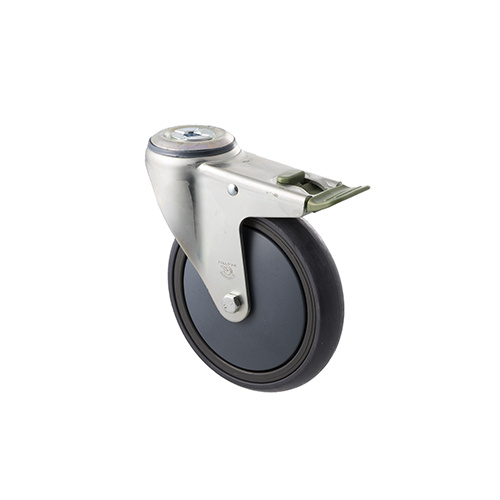

With a load rating of 200kg per castor, this Grey Rubber wheeled “Big M” Series range of Castors will suit applications such as trolleys and carts, shop fitting and display as well as mobile storage units.

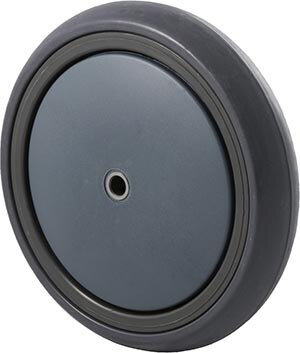

This castor is fitted with a  Grey Rubber wheel. Grey Rubber Wheels are shock absorbing and minimise vibration thus prolonging equipment life and protecting the load. They can roll over small objects and roll easily on rough floors. As they are non-marking Grey Rubber Wheels help protect costly floor surfaces.

Can be fitted with 1/2” or M12 bolt mounts with solid pintles (recommended) or expanding adaptors (at lighter usage/loads <80kg). Available in the Accessories section.

“M” Series Castor Specifications:

• Hub Width x Bore mm: 40 x 8
• Bearing Type: Ball Bearing*
• Capacity (per wheel) kg: 200
• Diameter x Tread Width mm: 175 x 34 - Mount Height mm: 214
• Tyre Material: Grey Rubber

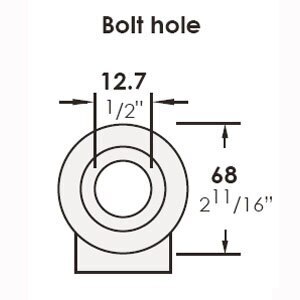

• Fork Type: Bolt Hole Directional Lock - locks swivel direction but allows wheel to rotate

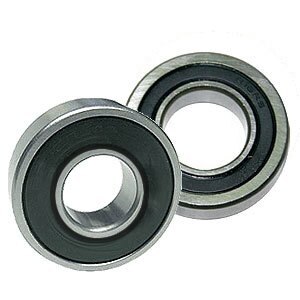

*Ball Bearings are used in applications where heat can build up due to friction caused by constant movement and/or higher speeds, as the high-tolerance and hardened steel used in the sealed and greased bearings reduces heat build-up that can cause weakening of the wheel. Ball bearings offer the lowest-friction and therefore the lowest push-effort.

“M” Series Castor Features:

• 5 year warranty on fork
• 3 year warranty on wheel
• Excellent design and performance

Reflex Equip carry a huge range of industrial, furniture and medical castors - designed for form and function, with signature style, very competitive prices and first-class quality and performance, backed up with a manufacturer's warranty.

Reflex Equip specialise in working with manufacturers to specify and customise castors to perfectly complement their equipment and furniture design.

Contact Reflex Equip today for expert advice on the right Castor for your particular application.
