With a load rating of 200kg per castor, this “M” Series range of Castors will suit applications such as trolleys and carts, shop fitting, display and mobile storage units.

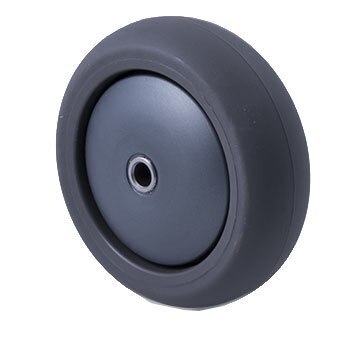

This castor is fitted with a Polyurethane wheel which have a longer tread life than rubber and offer excellent floor protection on linoleum, tile and carpet. When combined with stainless steel castors they are very suitable in wet and corrosive applications and are commonly used in Hospitals, Food Processing Plants and Pharmaceutical Laboratories. Polyurethane wheels provide easier rolling action and smooth manoeuverability for utility or service carts.

Can be fitted with 1/2” or M12 bolt mounts (with M12 threaded tube ends or expanding adaptors). Alternatively you could add pintles which are available in the Accessories section. Bushes are also available to reduce to 8mm, 3/8" and 10mm.

“M” Series Castor Specifications:

• Hub Width x Bore mm: 40 x 8
• Bearing Type: Ball Bearing*
• Capacity (per wheel) kg: 200
• Diameter x Tread Width mm: 100 x 32 - Mount Height mm: 135
• Tyre Material: Polyurethane
• Fork Type: Bolt Hole Directional Lock  - locks swivel direction but allows wheel to rotate

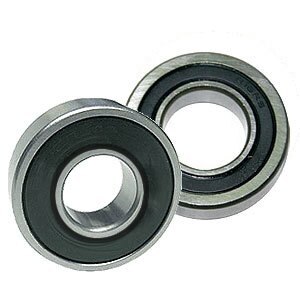

*Ball Bearings are used in applications where heat can build up due to friction caused by constant movement and/or higher speeds, as the high-tolerance and hardened steel used in the sealed and greased bearings reduces heat build-up that can cause weakening of the wheel. Ball bearings offer the lowest-friction and therefore the lowest push-effort.

“M” Series Castor Features:

• 5 year warranty on fork
• 3 year warranty on wheel
• Excellent design and performance

Reflex Equip carry a huge range of industrial, furniture and medical castors - designed for form and function, with signature style, very competitive prices and first-class quality and performance, backed up with a manufacturer's warranty.

Reflex Equip specialise in working with manufacturers to specify and customise castors to perfectly complement their equipment and furniture design.

Contact Reflex Equip today for expert advice on the right Castor for your particular application.
