Plastic centred pneumatic wheels are the low cost alternative, with excellent performance in wet and corrosive environments.

Plastic centred pneumatics are supplied with butyl rubber seamless (butt-joined) tubes as standard. These premium tubes provide greater reliability and longer life than cheaper alternatives. Tubes can be replaced if originals are punctured (see spare parts).

Pneumatic Wheels are a great option for carrying loads over uneven surfaces or in environments that commonly require moving over obstacles. They also have the benefit of providing some additional suspension to protect fragile loads on trolleys or additional grip for moving loads outdoors in wet or muddy environments.

Bearings:
Roller Bearings are used in high-impact applications (the large surface area of the bearing spreads load and therefore protects against high-impact). Roller Bearings are not suitable for high speed (more than 6kph).

Tyres:

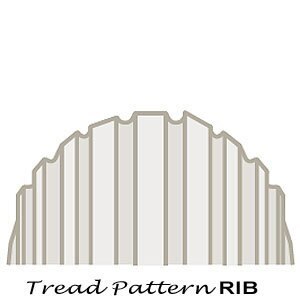

4 ply tyres for longer, rougher life with a RIB pattern tread. The RIB pattern features straight lines. Used commonly in wheelchairs and light duty trolleys that need a softer ride.

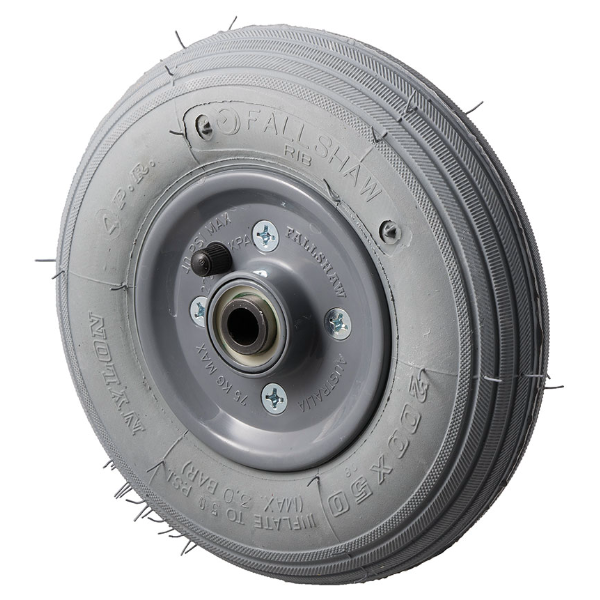

Pneumatic Plastic Centred Wheel Specifications:

• Tyre Type: Pneumatic
• Tyre Code: 200 x 50
• Diameter x Width mm: 200 x 50
• Tread Pattern Type: RIB
• Rim Type: Plastic
• Bearing: Roller Bearing
• Hub Width x Bore mm: 60 x 20
• Capacity at 8kph kg: 75

Pneumatic Plastic Centred Wheel Features:

• High engineering standards for wobble free operation
• Roller bearings
• Tyres are 4 ply for longer, rougher life

It is normal for Pneumatic Wheels to lose tyre pressure over time even if they are not being used and it’s important for your safety that you ensure that the wheels are pumped up to their recommended PSI before use. Do NOT inflate over recommended tyre inflation pressure (30 psi).

Contact Reflex Equip today for expert advice on the right Pneumatic Wheels for your particular application
